Underfloor Aluminum Mat

Underfloor Aluminum Mat

Underfloor Aluminum Mat is a floor heating system consists of two different components: Inner heating wire and outer aluminum packed cover.

  • Rated voltage :

    220V-240V
  • Cable construction :

    Twin conductor
  • Conductor :

    Solid heating core
  • Conductor Insulation :

    Fluoropolymer
  • Cold Lead :

    2.5m
  • Connector :

    Out splice
  • Cable Diameter :

    1.0mm
  • Cable Spacing :

    50mm
  • Resistance Tolerance :

    +10%/-5%
  • Power Output :

    80w/㎡ or 150w/㎡

Mainly used for heating under wooden heating and under carpet heating.And this structured design ensures the safety of heat output. The aluminum cover can shield all inner radiation.

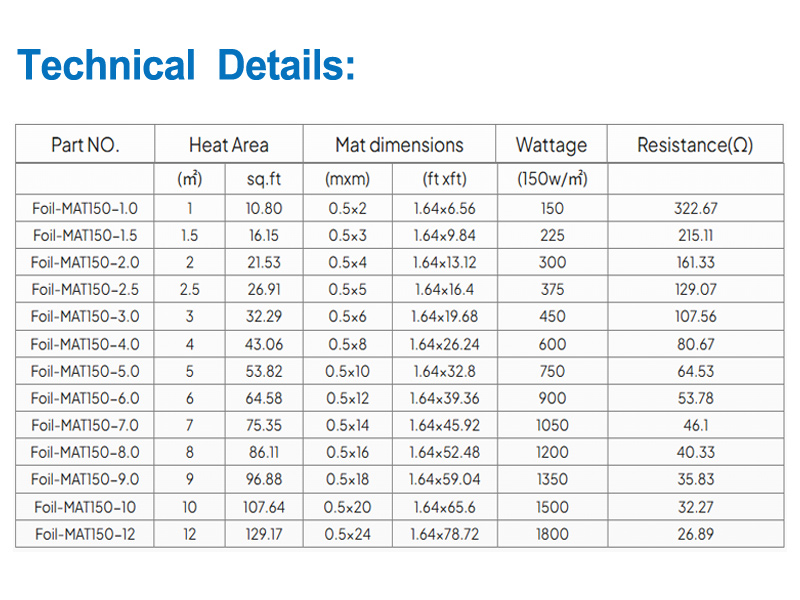

Technical Data:

150w/㎡

Part NO. Heat Area Mat dimensions

Wattage

Resistance(Ω)
  (㎡) sq.ft (mxm) (ft xft) (150w/㎡)
Foil-MAT150-1.0 1 10.80 0.5x2 1.64x6.56 150 322.67
Foil-MAT150-1.5 1.5 16.15 0.5x3 1.64x9.84 225 215.11
Foil-MAT150-2.0 2 21.53 0.5x4 1.64x13.12 300 161.33
Foil-MAT150-2.5 2.5 26.91 0.5x5 1.64x16.4 375 129.07
Foil-MAT150-3.0 3 32.29 0.5x6 1.64x19.68 450 107.56
Foil-MAT150-4.0 4 43.06 0.5x8 1.64x26.24 600 80.67
Foil-MAT150-5.0 5 53.82 0.5x10 1.64x32.8 750 64.53
Foil-MAT150-6.0 6 64.58 0.5x12 1.64x39.36 900 53.78
Foil-MAT150-7.0 7 75.35 0.5x14 1.64x45.92 1050 46.1
Foil-MAT150-8.0 8 86.11 0.5x16 1.64x52.48 1200 40.33
Foil-MAT150-9.0 9 96.88 0.5x18 1.64x59.04 1350 35.83
Foil-MAT150-10 10 107.64 0.5x20 1.64x65.6 1500 32.27
Foil-MAT150-12 12 129.17 0.5x24 1.64x78.72 1800 26.89





Foil Heating Mat Advantages:

• Foil-mat is simple to install, the foil heater delivers a consistent and even heat distribution.It can also be installed under the floor finish in wet areas without the need for additional earth grids.

• The thermal properties of the reinforced aluminium foil used in the heater help to spread the heat evenly.

• Improved savings can also be achieved by using foil underfloor heating in conjunction with the insulated underlay, as it dramatically reduces heat-up times by at least 50%. It is suitable for all applications, providing primary or secondary heating in all rooms or projects that adheres to building regulations.

• The foil heating mat is ideal for installation in regular shaped rooms, such as living rooms and bedrooms.
