Cable construction :
Twin conductorTwin conductor :
Solid heating coreInsulation :
FluoroplasticProtective jacket :
PVCConnector :
Out spliceOutside diameter :
5.0mmRated voltage :
220V-240VLiner power :
20W/mResistance tolerance :
+10%/-5%The Underfloor Heating Cable X-Cable is suitable for providing energy-efficient indoor underfloor heating and can be installed under almost any floor coverings.

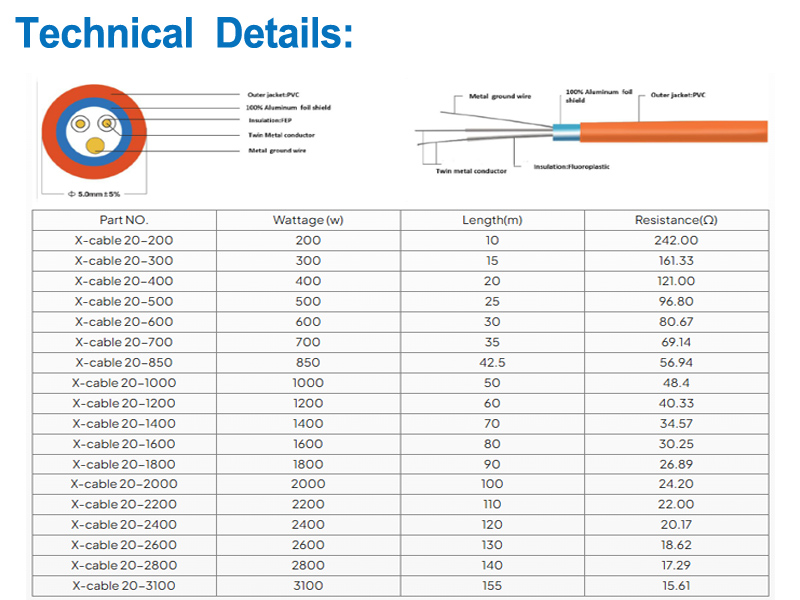

| Part NO. | Wattage (w) | Length(m) | Resistance(Ω) |
| X-cable 20-200 | 200 | 10 | 242.00 |
| X-cable 20-300 | 300 | 15 | 161.33 |
| X-cable 20-400 | 400 | 20 | 121.00 |
| X-cable 20-500 | 500 | 25 | 96.80 |
| X-cable 20-600 | 600 | 30 | 80.67 |
| X-cable 20-700 | 700 | 35 | 69.14 |
| X-cable 20-850 | 850 | 42.5 | 56.94 |
| X-cable 20-1000 | 1000 | 50 | 48.4 |
| X-cable 20-1200 | 1200 | 60 | 40.33 |
| X-cable 20-1400 | 1400 | 70 | 34.57 |
| X-cable 20-1600 | 1600 | 80 | 30.25 |
| X-cable 20-1800 | 1800 | 90 | 26.89 |
| X-cable 20-2000 | 2000 | 100 | 24.20 |
| X-cable 20-2200 | 2200 | 110 | 22.00 |
| X-cable 20-2400 | 2400 | 120 | 20.17 |
| X-cable 20-2600 | 2600 | 130 | 18.62 |
| X-cable 20-2800 | 2800 | 140 | 17.29 |
| X-cable 20-3100 | 3100 | 155 | 15.61 |
It will be safe to use inboth dry and wet locations.The X-Cable heats up through the inner conductor. It cannot be cut in any situation because the length and the output of the constant wattage cable are determinated.The outside diameter of the X-CABLE is 5.0 mm and rated at 20w/m. It provide a reliable and effective underfloor heating system.Since it is a loose floor heating cable, there is no fixed cable space.
We can provide customized production services according to your needs. The diameter and material of the cable can be customized according to your requirements.
UTH-cable is a twin-conductor indoor floor heating cable with metal ground wire. It provide a reliable and effective underfloor heating system that can work with tiles and many other floor coverings.
Details
UFH-MAT made up of three different components: fiberglass, heating element, and 2.5-meter standard cold lead.It is suitable for almost floor types, including ceramic tile, stone tile, engineered wood floor, laminate floor etc.
Details
UTH-cable Pro is a twin-conductor floor heating cable with Copper wire braided. It provides a reliable and effective underfloor heating system that can work with tiles and many other floor coverings.
Details
X-cable is a twin-conductor floor heating cable with metal ground wire.It is used for indoor underfloor heating,the subfloor can be ceramic tiles, natural stone and wooden floor etc.
Details
Underfloor Foil-mat is a floor heating system consists of two different components: Inner heating wire and outer aluminum packed cover.
Details
Our Snow Melting Cable IS-Cable is a 7mm outdoor twin conductors’ constant wattage heating cable.It rated at 30w/m and has Fluoroplastic and XLPE double insulation.
Details
Our Snow Melting Mat IS-MAT is a 7mm outdoor twin conductors’ constant wattage heating mat. It rated at 30w/m and has Fluoroplastic and XLPE double insulation.
Details
Our X-Cable Pro is a kind of twin conductors’ constant wattage heating cable with Copper wire braided.It has Fluoroplastic and XLPE double insulation.
Details
