Underfloor Heating Mat UFH-MAT

Underfloor Heating Mat UFH-MAT

UFH-MAT made up of three different components: fiberglass, heating element, and 2.5-meter standard cold lead.It is suitable for almost floor types, including ceramic tile, stone tile, engineered wood floor, laminate floor etc.



  • Rated voltage :

    220V-240V

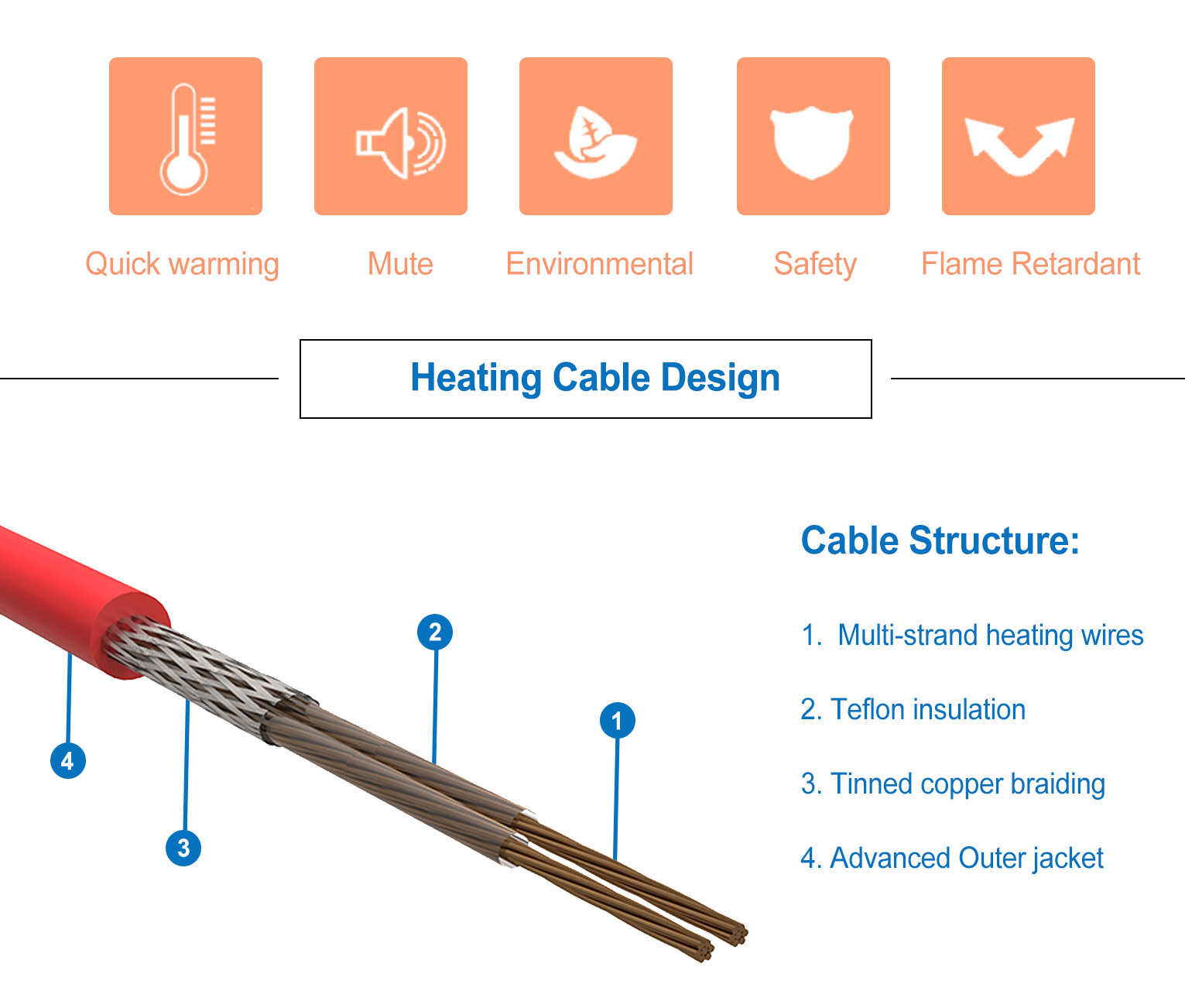

  • Cable construction :

    Twin conductor
  • Conductor :

    Solid heating core
  • Conductor Insulation :

    Fluoropolymer
  • Cold Lead :

    2.5m
  • Connector :

    Out splice
  • Cable Diameter :

    3.6mm
  • Cable Spacing :

    80mm or 100mm
  • Resistance Tolerance :

    +10%/-5%

UFH-MAT is safe for both dry and wet environments. and because they're fixed into an adhesive fabric mesh, making heating cable installation quick and easy.

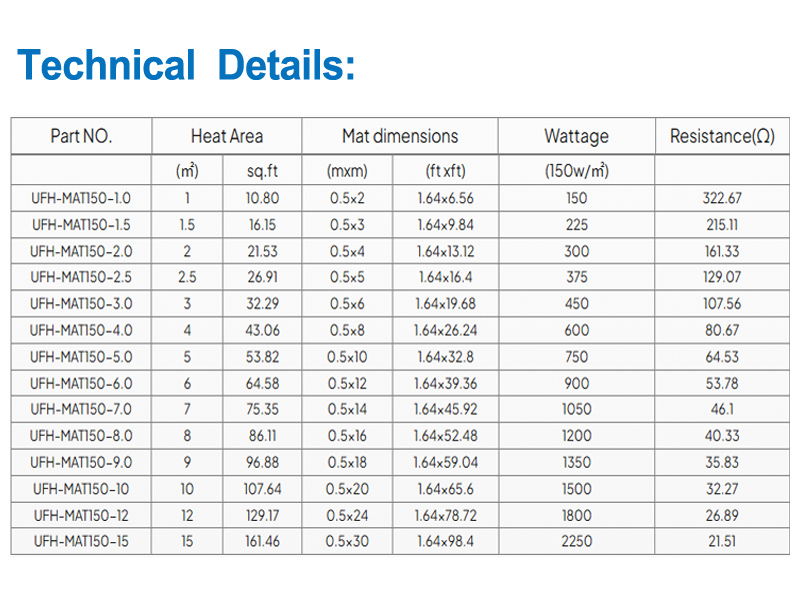

Technical Data:

150w/㎡

Part NO. Heat Area Mat dimensions

Wattage

Resistance(Ω)
  (㎡) sq.ft (mxm) (ft xft) (150w/㎡)
UFH-MAT150-1.0 1 10.80 0.5x2 1.64x6.56 150 322.67
UFH-MAT150-1.5 1.5 16.15 0.5x3 1.64x9.84 225 215.11
UFH-MAT150-2.0 2 21.53 0.5x4 1.64x13.12 300 161.33
UFH-MAT150-2.5 2.5 26.91 0.5x5 1.64x16.4 375 129.07
UFH-MAT150-3.0 3 32.29 0.5x6 1.64x19.68 450 107.56
UFH-MAT150-4.0 4 43.06 0.5x8 1.64x26.24 600 80.67
UFH-MAT150-5.0 5 53.82 0.5x10 1.64x32.8 750 64.53
UFH-MAT150-6.0 6 64.58 0.5x12 1.64x39.36 900 53.78
UFH-MAT150-7.0 7 75.35 0.5x14 1.64x45.92 1050 46.1
UFH-MAT150-8.0 8 86.11 0.5x16 1.64x52.48 1200 40.33
UFH-MAT150-9.0 9 96.88 0.5x18 1.64x59.04 1350 35.83
UFH-MAT150-10 10 107.64 0.5x20 1.64x65.6 1500 32.27
UFH-MAT150-12 12 129.17 0.5x24 1.64x78.72 1800 26.89
UFH-MAT150-15 15 161.46 0.5x30 1.64x98.4 2250 21.51



The mat thickness of only 3.6mm enables underfloor heating installations into most quality two-part adhesive with a minimum increase in floor height.

We can provide customized production services according to your needs. The diameter and material of the cable can be customized according to your requirements.
