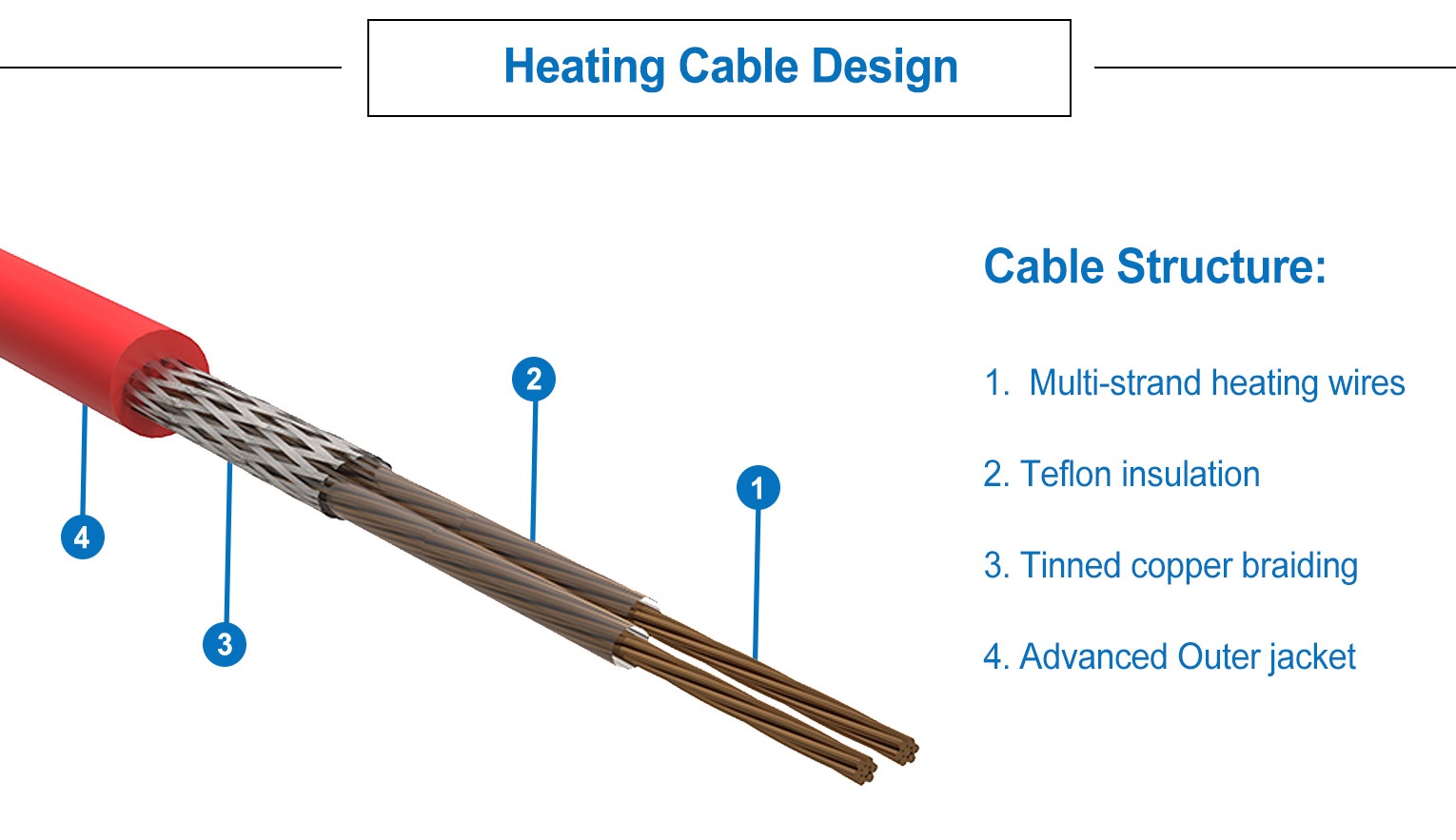

Cable construction :
Twin conductorTwin conductor :
Solid heating coreInsulation :
FluoroplasticProtective jacket :
PVCConnector :
Out spliceOutside diameter :
3.6mmRated voltage :
220V-240VLiner power :
12W/m or 15W/mResistance tolerance :
+10%/-5%The Electric Floor Heating Cable UTH can be used for ceramic tiles , natural stone and wooden floor etc. It's also suitable for either primary or secondary heat.

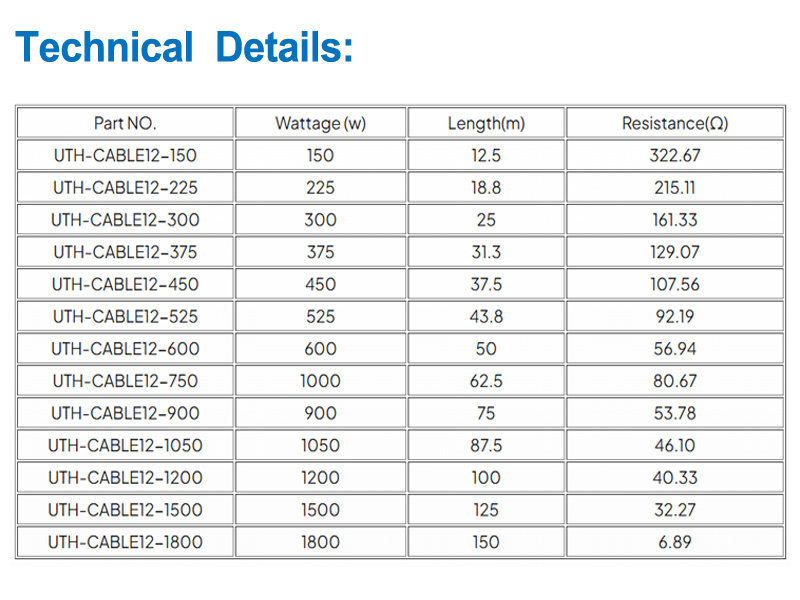

Technical Data:
| Part NO. | Wattage (w) | Length(m) | Resistance(Ω) |
| UTH-CABLE12-150 | 150 | 12.5 | 322.67 |
| UTH-CABLE12-225 | 225 | 18.8 | 215.11 |
| UTH-CABLE12-300 | 300 | 25 | 161.33 |
| UTH-CABLE12-375 | 375 | 31.3 | 129.07 |
| UTH-CABLE12-450 | 450 | 37.5 | 107.56 |
| UTH-CABLE12-525 | 525 | 43.8 | 92.19 |
| UTH-CABLE12-600 | 600 | 50 | 56.94 |
| UTH-CABLE12-750 | 1000 | 62.5 | 80.67 |
| UTH-CABLE12-900 | 900 | 75 | 53.78 |
| UTH-CABLE12-1050 | 1050 | 87.5 | 46.10 |
| UTH-CABLE12-1200 | 1200 | 100 | 40.33 |
| UTH-CABLE12-1500 | 1500 | 125 | 32.27 |
| UTH-CABLE12-1800 | 1800 | 150 | 26.89 |

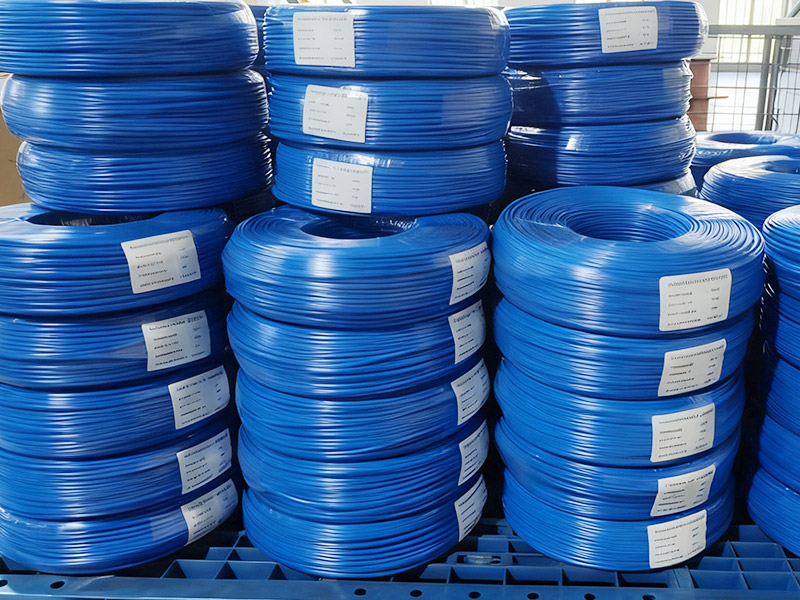

The UTH Cables are regular rated at 12W/m or 15W/m and supplied as a cable on a roll. It is the ideal solution for those complicated floor areas where a mat is not suitable. Since it is a loose floor heating cable, there is no fixed cable space. So you can change the wattage/sqm by adjusting the cable spacing within the range we suggest.
We can provide customized production services according to your needs. The diameter and material of the cable can be customized according to your requirements.
UTH-cable is a twin-conductor indoor floor heating cable with metal ground wire. It provide a reliable and effective underfloor heating system that can work with tiles and many other floor coverings.
Details
UFH-MAT made up of three different components: fiberglass, heating element, and 2.5-meter standard cold lead.It is suitable for almost floor types, including ceramic tile, stone tile, engineered wood floor, laminate floor etc.
Details
UTH-cable Pro is a twin-conductor floor heating cable with Copper wire braided. It provides a reliable and effective underfloor heating system that can work with tiles and many other floor coverings.
Details
X-cable is a twin-conductor floor heating cable with metal ground wire.It is used for indoor underfloor heating,the subfloor can be ceramic tiles, natural stone and wooden floor etc.
Details
Underfloor Foil-mat is a floor heating system consists of two different components: Inner heating wire and outer aluminum packed cover.
Details
Our Snow Melting Cable IS-Cable is a 7mm outdoor twin conductors’ constant wattage heating cable.It rated at 30w/m and has Fluoroplastic and XLPE double insulation.
Details
Our Snow Melting Mat IS-MAT is a 7mm outdoor twin conductors’ constant wattage heating mat. It rated at 30w/m and has Fluoroplastic and XLPE double insulation.
Details
Our X-Cable Pro is a kind of twin conductors’ constant wattage heating cable with Copper wire braided.It has Fluoroplastic and XLPE double insulation.
Details
