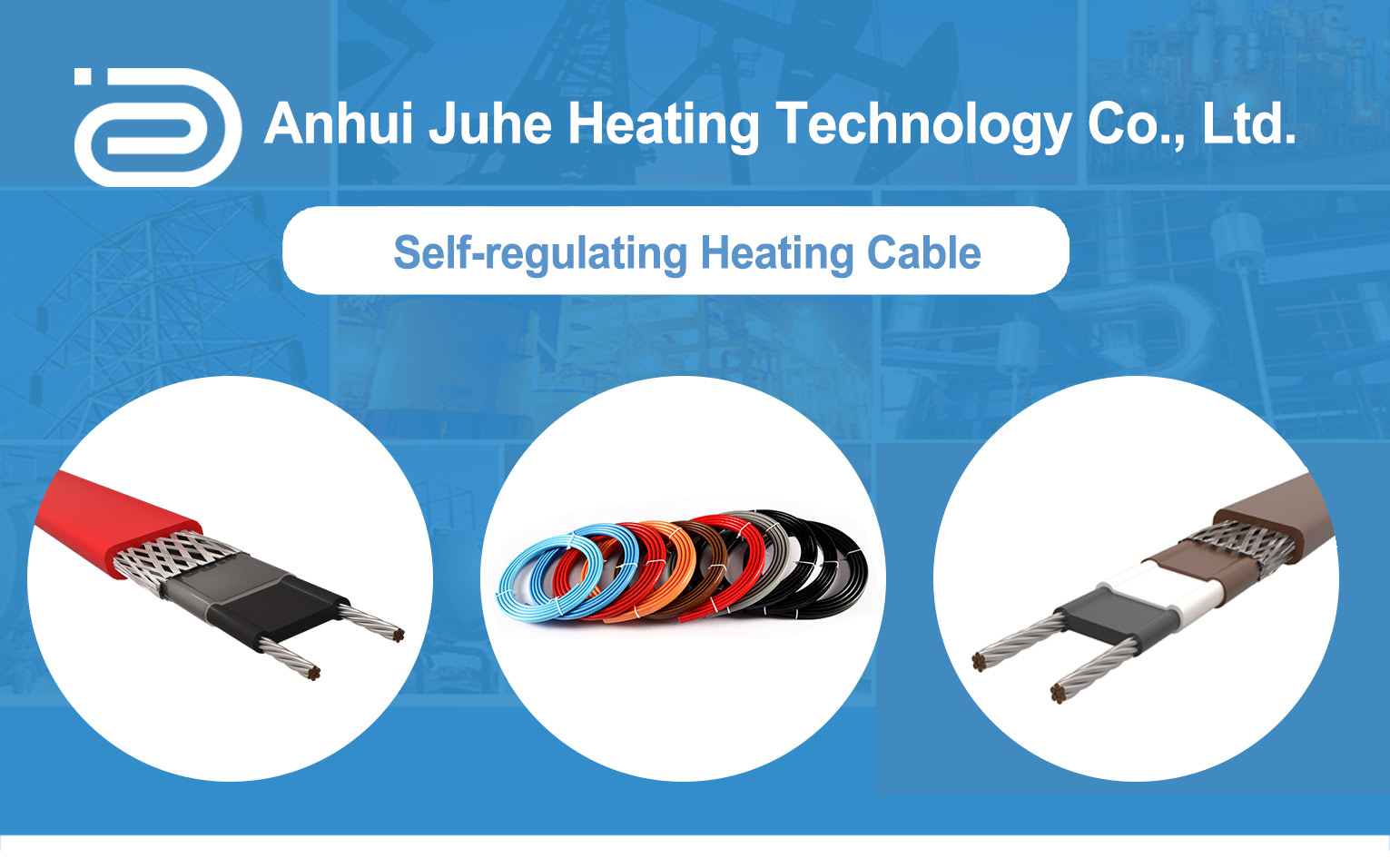

SRS Factory Wholesale OEM Self Regulating heating Cable
SRS is a type of industrial grade middle-temperature self-regulating heating cable.
It provides heat compensation solutions for large pipes ,tanks and other industrial processes.
Supply voltage :
220V-240VNominal power :
15W/m, 30W/m, 45W/m, 60W/mMaximum Un-energized temperature :
200°CMaximum Energized temperature :
120°CMinimum installation temperature :
-40°CSRS Factory Wholesale OEM Self Regulating heating Cable Specification:
Supply voltage: 220V to 240V
Max. permissible operating temperature under load: +120 °C
Max. permissible operating no-load temperature: +200 °C
Temperature class: T4, T3
Protection rating: IP66
Minimum installation temperature: -40 °C
Minimum bending radius: 25 mm at -40 °C
Rated power: 10 ,16, 24, 30, 40 (W/m) at 10°C
Explosion-protection type: 1ExellCT3.....T6GbX

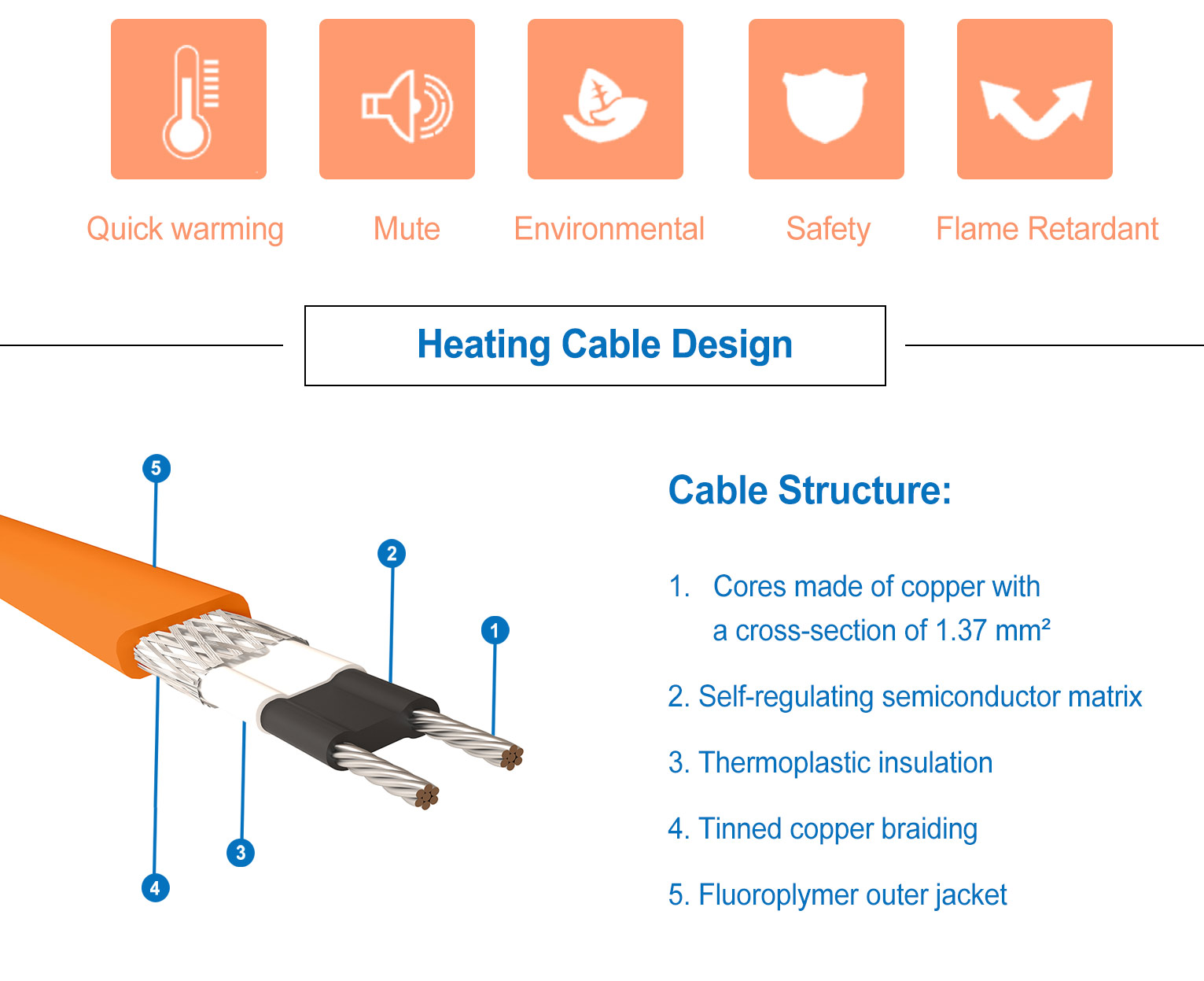

SRS Factory Wholesale OEM Self Regulating heating Cable Design:
1. 19*0.32 Nickel plated copper wire
2. Self-regulating conductive core
3. Thermoplastic insulation
4. Tinned copper braid
5. Fluoroplymer outer jacket
Technical Data:
| Technical Data | 15SRS2CF | 30SRS2CF | 45SRS2CF | 60SRS2CF |
| Output Power@+10°C(W/m) | 15 | 30 | 45 | 60 |
| Maximum Energized | 120°C | 120°C | 120°C | 120°C |
| Maximum Un-energized | 200°C | 200°C | 200°C | 200°C |
| Maxlength@0°C | 70/102/- | 60/78/- | 54/65/- | 42/66/76- |
| Max length@-20°C 16/20A(m) | 78/94/- | 60/90/- | 46/67/75 | 36/52/62 |
| Size (mm) | 10.1*5.1 | 10.1*5.1 | 10.1*5.1 | 10.1*5.1 |
| Weight((kg/km) | 98 | 98 | 98 | 98 |
SRS Factory Wholesale OEM Self Regulating heating Cable Features:
• Automatic regulation of heat release when the temperature of the heated surface changes.
• It can be cut of to the required length.
• It does not overheat or burn through in case of self-crossing.
• It can be used in both safe and explosion-hazard areas

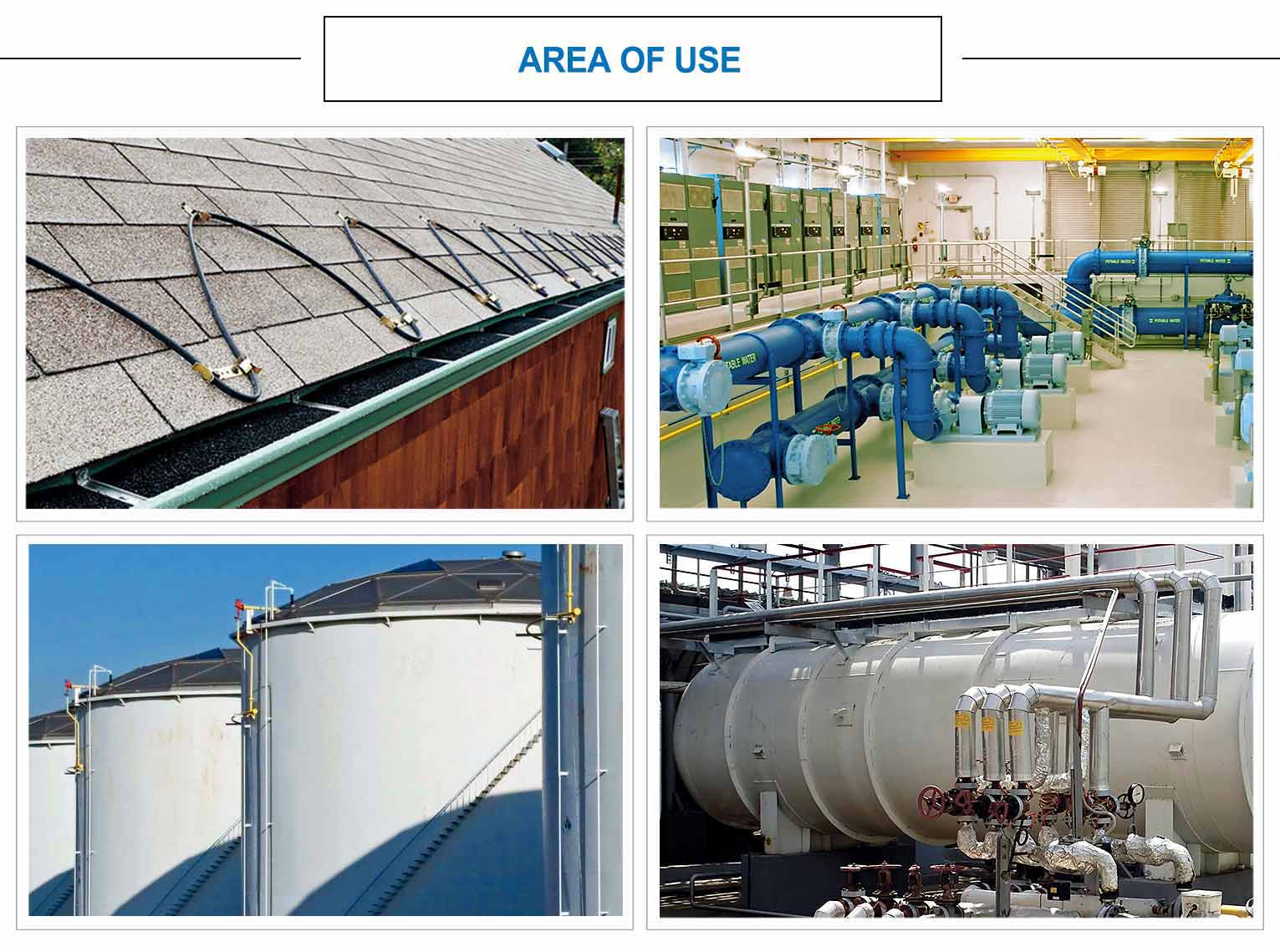

Area of Use
SRX is a self-regulating heating cable crafted for high-temperature industrial applications, tailored for tasks like pipe freeze protection, vessel heating, and process temperature maintenance for pipes or tanks operating at temperatures up to 200°C.
Details
SRS is a type of industrial grade middle-temperature self-regulating heating cable. It provides heat compensation solutions for large pipes ,tanks and other industrial processes.
Details
SRS is an industrial-grade middle-temperature self-regulating heating cable specifically designed to offer heat compensation solutions for large pipes, tanks, and various industrial processes.
Details
SRX self-regulating heating cable suitable for use in the high temperature range of industrial applications such as pipe freeze protection, vessel heating and process temperature maintenance for pipe or tank up to 200°C.
